Single Docker Endpoint for Nexus Repository Manager

I use Sonatype Nexus Repository Manager OSS professionally to handle artifacts for our projects. We also use containers a fair bit but how Nexus handles these out of the box is quite annoying (Each repo is a separate port and authentication point).

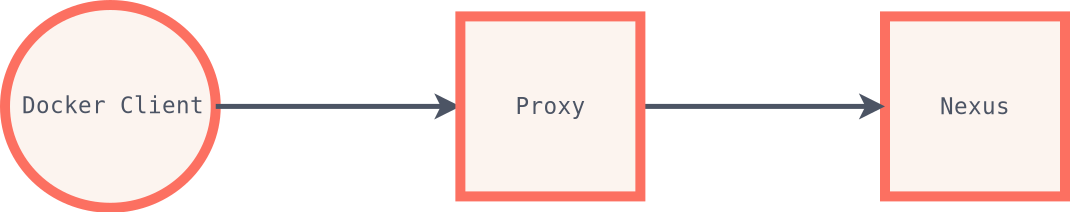

I was able to front Nexus with a reverse proxy and allow one endpoint for all of our internal docker repositories while maintaining individual authentication and access rules.

We can do this because the docker client uses http to communicate and it passes its own user-agent (Docker-Client/[docker client version]) and has a standard path when looking for the docker repository it wants to talk to (/v2/[repository name]). Once that is understood it is quite trivial to sent up a single endpoint nexus.example.com and delegate the docker traffic to the ports the repositories are listening on.

This really should just be a feature built into Nexus Repository Manager.

Example Configs

NGINX

This is just an all in one configuration however I do not see why an include docker_repos/*.conf could not be inside the user-agent if block.

server {
  listen              443 ssl;

  ssl_certificate     cert;
  ssl_certificate_key key;

  proxy_set_header    X-Forwarded-For $proxy_add_x_forwarded_for;

  // Nexus Repository Manager
  location / {
    proxy_pass http://[nexus host]:[nexus host port];
  }

  // Docker Repositories
  if ($http_user_agent ~ ^Docker-Client) {
    location /v2/docker_repo_01 {
      proxy_pass http://[nexus host]:[nexus docker repo 01 port];
    }
    location /v2/docker_repo_02 {
      proxy_pass http://[nexus host]:[nexus docker repo 02 port];
    }
  }
}

HAPROXY

The version of HAPROXY I am configuring for here is 1.8.

frontend https_in
  bind    :443 ssl crt key.pem
  option  forwardfor
  # Set the docker repo redirects first
  # HAPROXY matches top to bottom
  use_backend docker_repo_01 if { hdr_beg(user-agent) -i Docker-Client } { path_beg -i /v2/docker_repo_01 }
  use_backend docker_repo_02 if { hdr_beg(user-agent) -i Docker-Client } { path_beg -i /v2/docker_repo_02 }
  # Nexus Repository Manager
  use_backend nexus_http

backend nexus_http
  server nexus_http [nexus host]:[nexus host port]

backend docker_repo_01
  server docker_repo_01 [nexus host]:[nexus docker repo 01 port] check

backend docker_repo_02
  server docker_repo_02 [nexus host]:[nexus docker repo 02 port] check
